D-60


Oberg Oil Filter/Drum Crushers

D-60

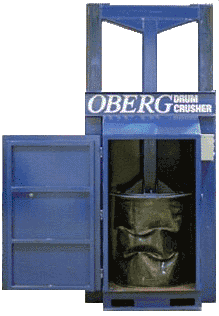

The Oberg Model D-60 is a dual purpose machine. This Drum Crusher can be used to compact waste inside the drum or to crush the empty drum itself. By compacting waste into the drum you can realize dramatic savings in handling and disposal fees by getting up to 80% more material into each drum.

Typical waste products that our customers are compacting into drums include paint booth air filters, shop rags, cartridge-style oil filters, low-level radioactive waste, laboratory garments, absorbent materials, metal and plastic containers, and glassware. Alternatively, you may have a lot of used drums that you need to dispose of.

The Model D-60 will crush a 55 gallon drum down to 4" in height greatly reducing storage space requirements and transport fees.

The Model D-60 will crush drums up to 85 gallons in size.

Depth 54 Inches
Width: 42 Inches
Height: 117 Inches
Weight: 2300 lbs
Voltage (Volts) 230 volts a.c.
Specific Characteristics:
  • Cycle Time 60 seconds
  • Cavity Size 30"w x 30"d x48"tall
  • Motor- 10 hp, 3 phase, 208v-240v-480v
  • Crushing Force 60,000 lbs
  • Safe - meets all required safety standards
  • Durable - heavy duty construction all structural
  • Components are made of at least 3/8" steel
  • Automatic - push button control
  • Large feed opening facilitates material feeding when compacting in the drum
  • Unique reverse orientation, dual cylinder design virtually eliminates the possibility of bent rods
  • Quick change platen for easy conversion between drum crushing and in-drum compacting

Options

  • 50 Hz motor for international markets
  • Explosion-proofing (Class 1, Division 2)





HOW TO

Crushed Drum
