Heavy Duty Starter

The largest size in the Spring Starter range, the Heavy Duty , is capable of starting engines up to 12.0 litres with a maximum of six cylinders or engines up to 12 litres with a maximum of eight cylinders.

The Heavy Duty Spring Starter can be installed on all manufacturers diesel engines.

Depth 5.2 Inches
Width: 13.6 Inches
Height: 5.5 Inches
Weight: 39.6 lbs
Specific Characteristics:
  • Rotation:- Clock model SDCH
  • Anti clock model SDAH
  • Mounting Flange:-SAE 1, SAE2;SAE 3, SAE 4
  • Pinion face to flange face Dimension (mm)28 , 47 and other variations
  • Engine Capacity;1.3 litre/ cylinder; 6 cyl. maximum
  • Pinion
    • 11 to 13 T 10/12 F/S
    • 11 to 13 T 8/10 F/S
    • 11 or 12 T 6/8 F/S
    • 9 to 13 T Mod 2.5/3
  • Max. Torque at pinion 126 Nm (93 Ft lb.)
  • Max.Winding handle torque 81 Nm (60 Ft lb.)
  • Winding handle position Variable 8.5 degree increment
  • Turns to fully wind 12
  • Weight (Kg ) 18
  • Cold starting Starting aid below 5 degree C


TYPICAL APPLICATION

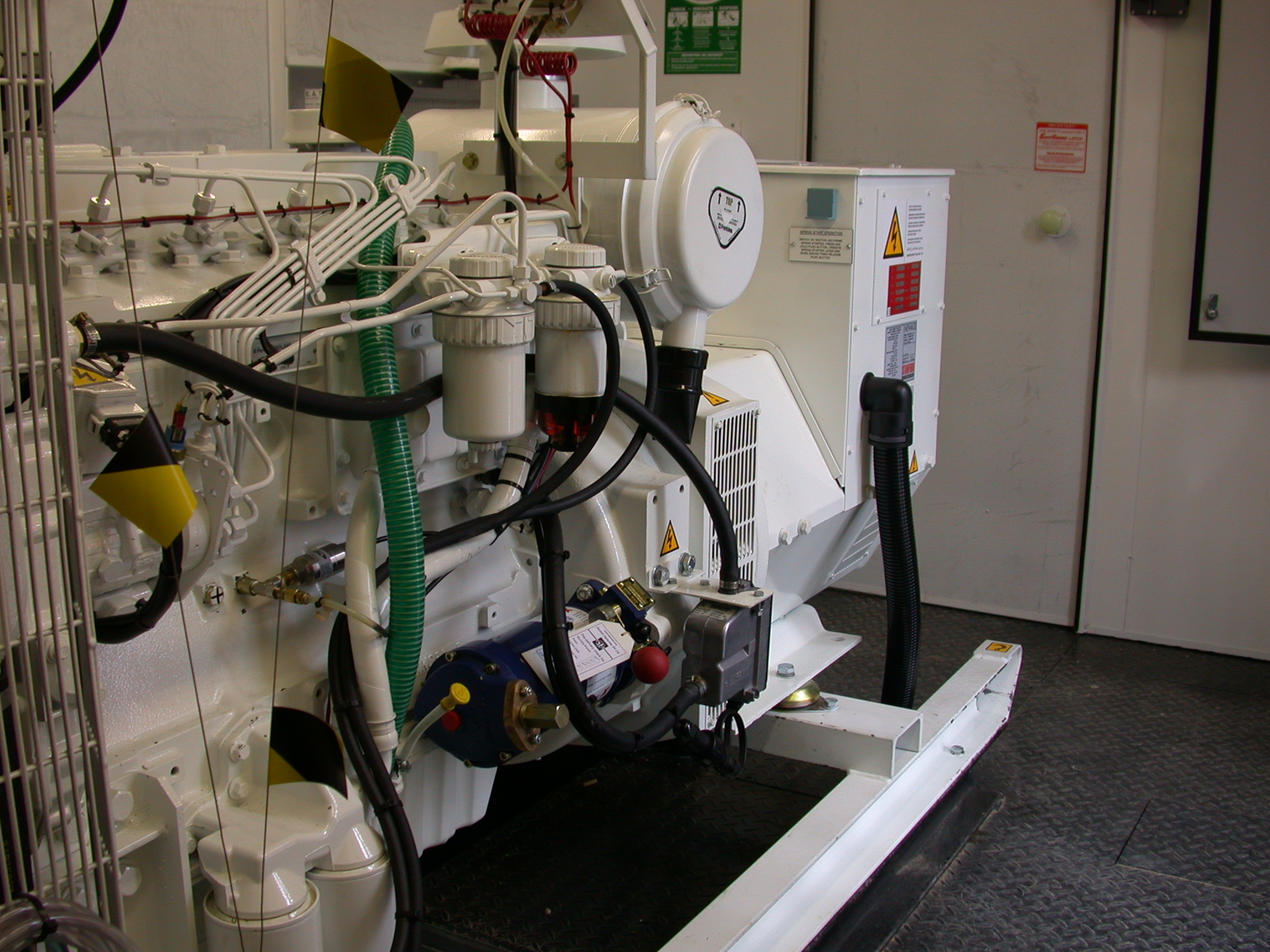

  • Perkins 100 series
  • Aifo
  • Baudouin
  • Bedford
  • BMW
  • Bukh
  • Caterpillar
  • Cummins
  • Daewoo
  • Daf
  • Daihatsu
  • Detroit Diesel
  • Deutz
  • Farymann
  • Fiat
  • Ford
  • General Motors
  • Harbor Master
  • Hatz
  • International Harvester
  • Isuzu
  • Iveco
  • John Deere
  • Kirloskar
  • Kubota
  • Leyland
  • Lister-Petter
  • Lombardini
  • Man
  • Mercedes Benz
  • Mermaid
  • Mitsubishi
  • Mitsui-Deutz
  • MTU
  • MWM
  • Onan
  • Perkins
  • Perkins Prima
  • Ruggerini
  • Sabb
  • Sabre
  • Samé
  • Saviem
  • Scania
  • Siyang Power (east China)
  • Slanzi Motors
  • V M
  • Valmet
  • Volvo Penta
  • Watermota Marine
  • Wisconsin
  • Yanmar
  • Cummins 6CT 8.3 engine
  • Cummins NTA855-DM
  • Iveco
