Maxi Starter


Mechanical Spring Starters

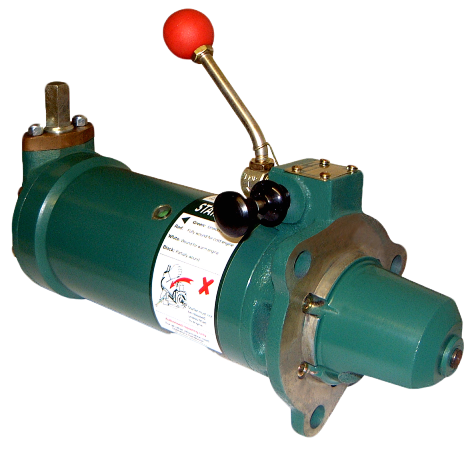

Maxi Starter

The middle size in the Spring Starter range, the Maxi, is capable of starting engines up to 9.0 litres with a maximum of six cylinders or engines up to 10 litres with a maximum of eight cylinders.

The Maxi Spring Starter can be installed on all manufacturers diesel engines.

Depth 4.5 Inches
Width: 11.2 Inches
Height: 5.0 Inches
Weight: 44.0 lbs
Specific Characteristics:
  • Rotation:- Clock model SXC
  • Anti clock model SXA
  • Mounting Flange: SAE.1 , SAE2, SAE 3
  • Pinion face to flange face Dimension (mm) 47
  • Engine Capacity
    • 1.5 litre / cylinder; 6 cyl. maximum
    • 1.25 litre cylinder 8 cyl. maximum
  • Pinion
    • 11 to 13 teeth 8/10 F/S
    • 11 or 12 teeth 6/8 F/S
    • 11 to 13 teeth Mod. 3
  • Max. Torque at pinion 126 Nm (93 Ft lb.)
  • Max.Winding handle torque 81 Nm (60 Ft lb.)
  • Winding handle position Variable 8.5 degree increment
  • Turns to fully wind 14
  • Weight (Kg ) 20
  • Cold starting Starting aid below 5 degree C


TYPICAL APPLICATION

  • Cummins 6CT 8.3 engine

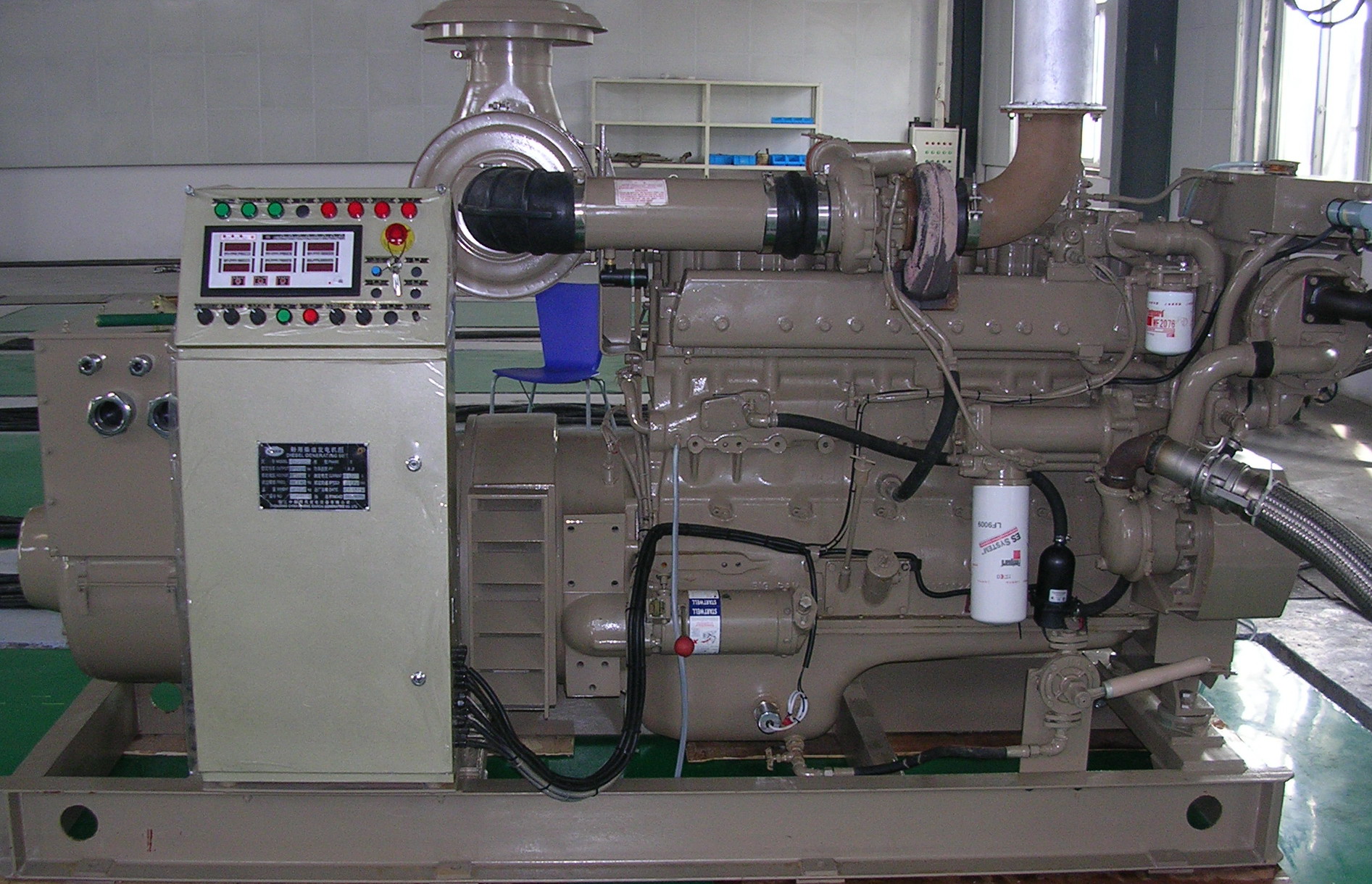

  • Cummins NTA855-DM

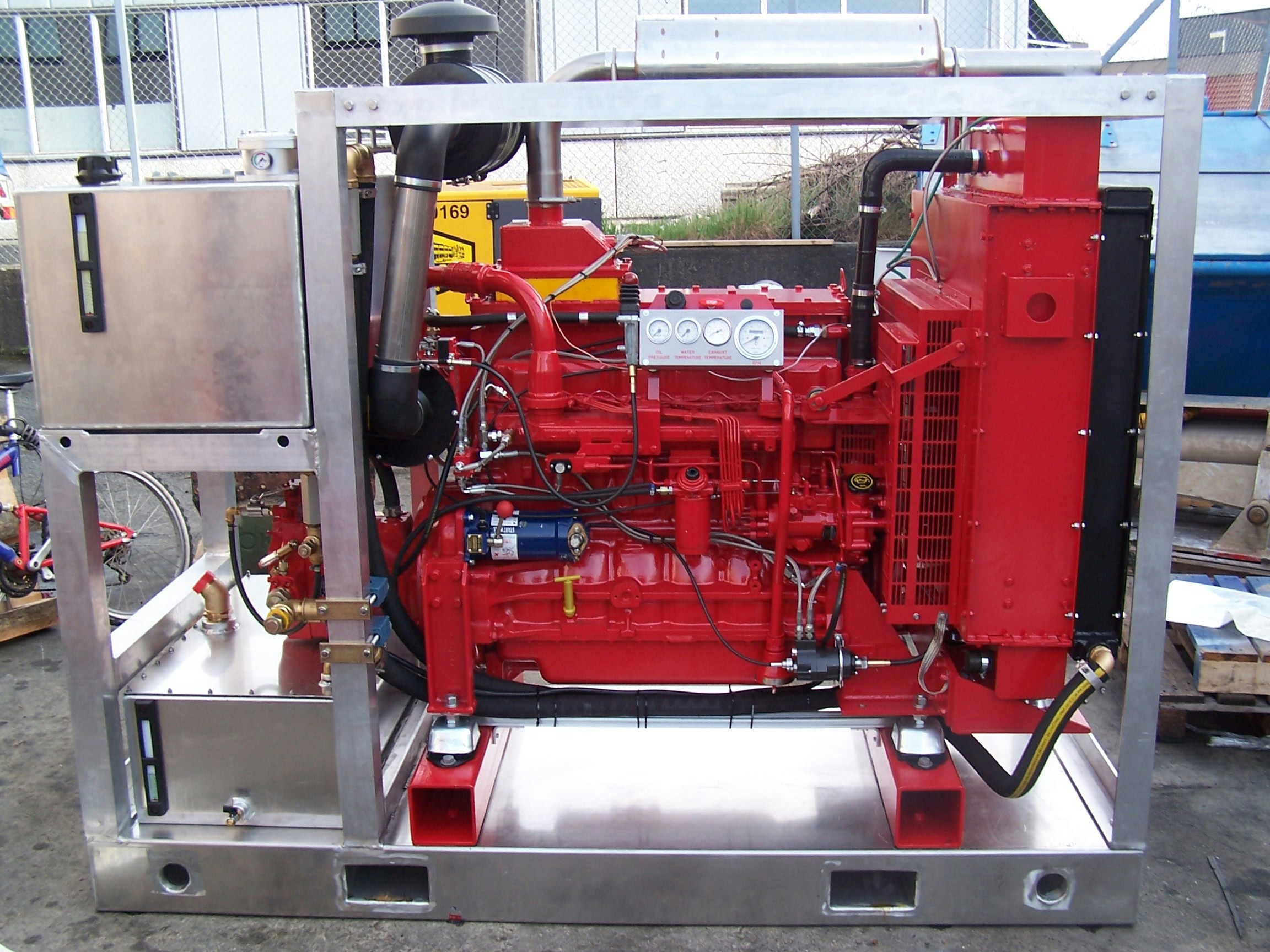

  • Iveco
