Mini Starter


REQUEST A QUOTE

Mechanical Spring Starters

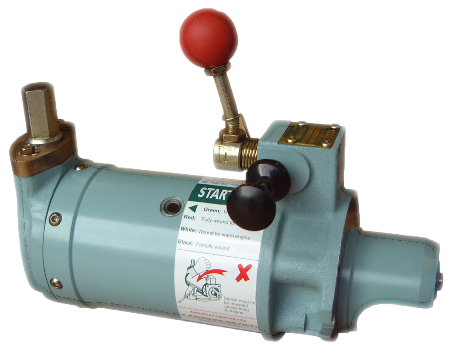

Mini Starter

The smallest size in the Spring Starter range, the Mini, is capable of starting engines up to 2.0 litres with a maximum of four cylinders.

The Midi Spring Starter can be installed on all manufacturers diesel engines.
Depth 4.3 Inches
Width: 10.2 Inches
Height: 4.5 Inches
Weight: 26.4 lbs
Specific Characteristics:
  • Rotation:- Clock model SNC
  • Anti clock model SNA
  • Mounting Flange:- SAE 1, SAE 4
  • Pinion face to flange face Dimension (mm) 20 or 28
  • Engine Capacity 0.5 litre/cylinder; 4 cyl. maximum
  • Pinion
    • 10 to 13 teeth 8/10 F/stub
    • 10 to 13 teeth 10/12 F/stub
    • 9 to 13 teeth Mod.3
    • 11 to 13 teeth Mod.3
  • Max. Torque at pinion 91 Nm (71 Ft lb.)
  • Max.Winding handle torque 60 Nm (45 Ft lb.)
  • Winding handle position Variable 8.5 degree increment
  • Turns to fully wind 7.5
  • Weight (Kg ) 12
  • Cold starting Starting aid below 5 degree

TECHNICAL SPECS

Mechanical_Spring_Starters.pdf

HOW TO

HOW_TO_INSTALL_SPRING_STARTERS.pdf

How_To_Operate_-Spring_Starters.pdf

TYPICAL APPLICATION

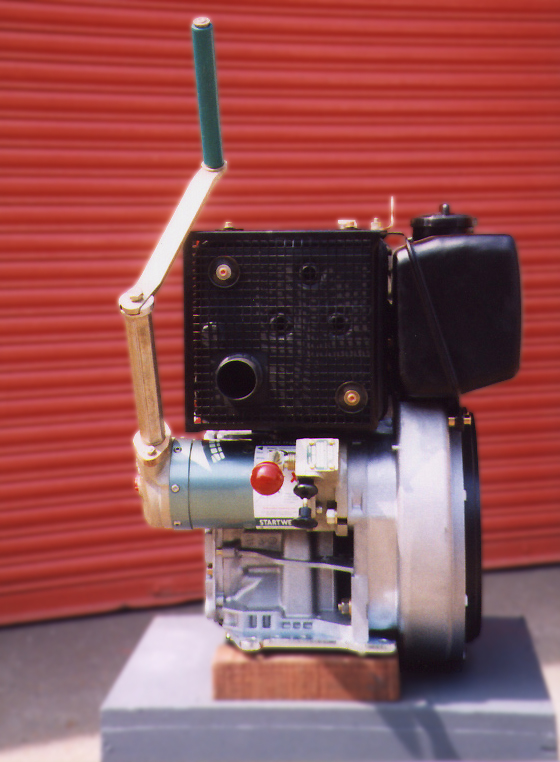

  • Mini engine
  • Cummins 6CT 8.3 engine
  • Cummins NTA855-DM
  • Iveco
