Super Maxi Starter


Mechanical Spring Starters

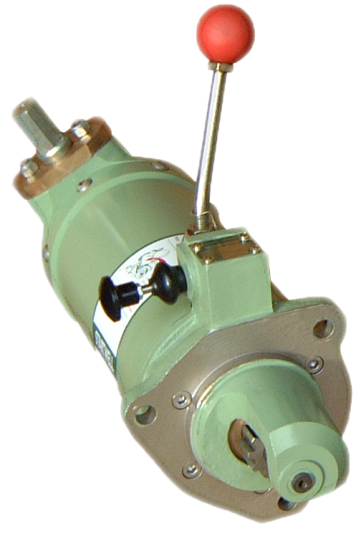

Super Maxi Starter

The penultimate size in the Spring Starter range, the Super Maxi, is capable of starting engines up to 12.0 litres with a maximum of six cylinders or engines up to 12 litres with a maximum of eight cylinders.

The Maxi Spring Starter can be installed on all manufacturers diesel engines.

Depth 4.6 Inches
Width: 12.9 Inches
Height: 5.1 Inches
Weight: 55.0 lbs
Specific Characteristics:
  • Rotation- Clock model SSXC
  • Anti clock model SSXA
  • Mounting Flange:-SAE 1, SAE 2, SAE 3
  • Pinion face to flange face Dimension (mm) 47
  • Engine Capacity
    • 2.0 litre/ cylinder; 6 cyl. Maximum
    • 1.5 litre/cylinder; 8 cyl. maximum
  • Pinion
    • 11 to 13 teeth 8/10 F/S
    • 11 or 12 teeth 6/8 F/S
    • 11 to 13 teeth Mod. 3
  • Max. Torque at pinion 140 Nm (104 Ft lb.)
  • Max.Winding handle torque 94 Nm
  • Winding handle position Variable 8.5 degree increment
  • Turns to fully wind 17
  • Weight (Kg ) 25
  • Cold starting Starting aid below 5 degree C


TYPICAL APPLICATION

  • Cummins 6CT 8.3 engine
  • Cummins NTA855-DM
  • Iveco
